Vario Therm-S

Vario Therm-S is an energy-efficient continuous rooflight that meets the highest expectations of functionality and aesthetic design. These rooflights are ideal for energy efficiency related refurbishments due to their design flexibility, light weight and excellent total heat transmission (with Uw-values as low as 1.1 W/m²K).

• Various glazing slopes enable versatile design.
• Thermal decoupling and thermal insulation of the eaves area and the kerb head minimise heat loss.
• A great selection of glazing types fulfill thermal, photometric and other special requirements as needed.
• Equipped with the corresponding flap system and devices, the Vario Therm-S rooflight can be used for comfort ventilation and can serve as smoke and heat exhaust ventilation (SHEV).
• Three types of fall-through protection ensure maximum safety during installation and maintenance work on the roof.
• Accessories such as adjustable upstands, secure roof membrane connections and intelligent building management systems make it easy to configure the rooflights to meet specific project requirements.
• Ideal for implementing with solar photovoltaic systems.

Vario Therm variants

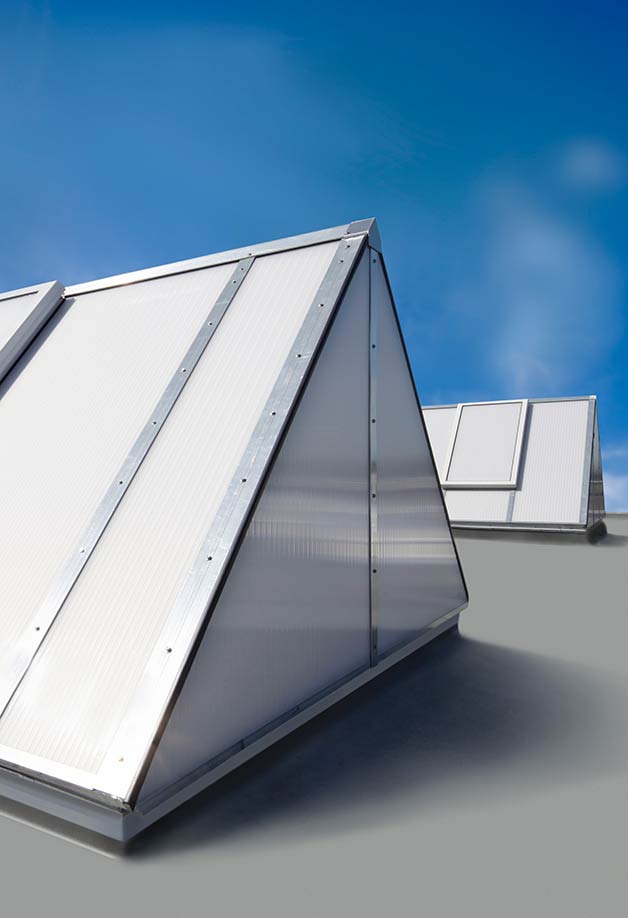

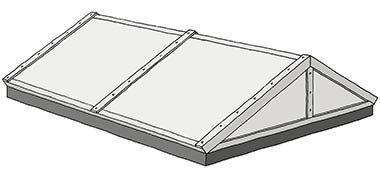

Dual pitched Vario Therm-S

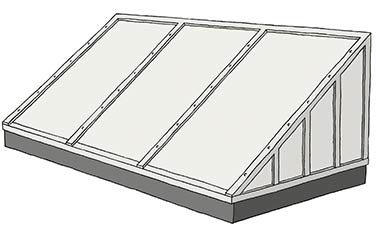

Mono pitched Vario Therm-S

Vario Therm-S rooflights have a high-quality construction comprising the innovative composite profile with a rigid PVC multi-chamber insulation structure and aluminium cover profiles. The result is a robust system with excellent thermal performance and plenty of design flexibility.

• Mono- and dual-pitched rooflight solutions
• Standard dual-pitched solutions: 30°/30°, 45°/45°, 30°/60° (shed-type), custom solution upon request
• Mono-pitched rooflight solutions with custom glazing slope, upon request
• Available in widths of 1.00 to 6.00 m, and in any length
• U-values down to Uw=1.1 W/m²K
• European Technical Assessment (ETA)-17/0770
• Environmental product declaration Type II according to EN ISO 14021
• Additional structural support for high wind and snow load areas
• Load transfer of snow load up to 12 kN
• Load transfer of peak velocity pressure up to 4.88 kN
• Smoke and heat exhaust tested according to DIN EN 12101-2
• Structural dimensioning according to Eurocode
• Great selection of accessories, including adjustable upstands, connection systems and intelligent building controls

Vario Therm-S has a variety of glazing types, with a range of thickness and colours including opal or clear with the following features:

• Ug-values from 1.8 up to 1.2 W/m²K
• Light transmission from 64% to 26%
• Airborne sound insulation up to 18 dB

Glazing example, clear polycarbonate

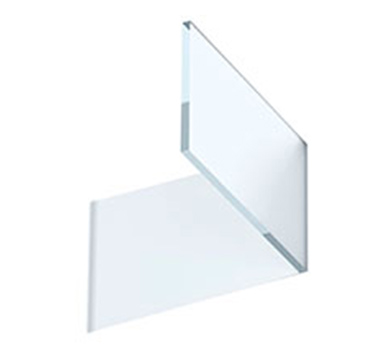

Glazing example, opal polycarbonate

Equipped with single flaps (EKS) and corresponding opening devices, the Vario Therm-S rooflights are suitable for daily comfort ventilation and can also provide effective smoke and heat exhaust ventilation.

• Explore the Vario Therm-S ventilation and SHEV systems.
• Our certified SHEV systems guarantee the highest level of protection in the event of fire; tested according to DIN 12101-2.
• The optional intelligent building managment system Smartcontrol facilitates the comfortable and safe control of all SHEV and ventilation systems.

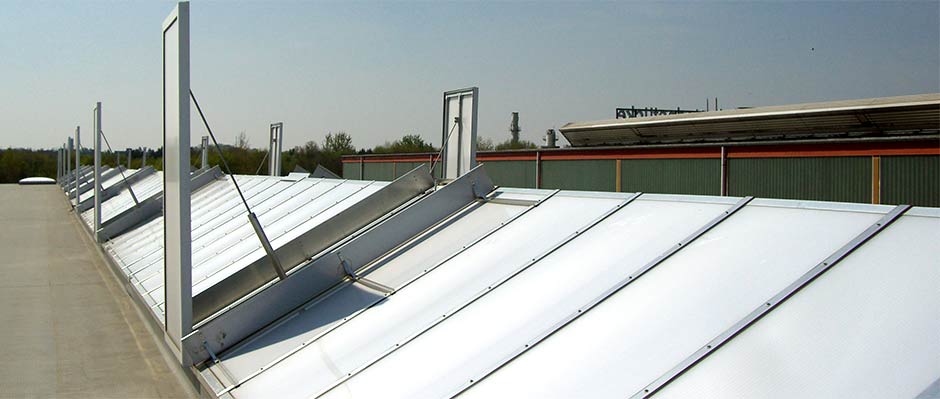

Vario Therm Saddle rooflight with single ventilation flaps EKS

Fall-through protection systems ensure safety during installation and maintenance work on the roof. Options compatible with Vario Therm-S continuous rooflights include:

• LB-DSL - A filigree steel safety grid
• LB-SR - A steel tube system with cross beam
• Vario Protect - A multifunctional safety and sun protection system
• Vario Safeguard - Provides comprehensive traffic route protection

Explore our above mentioned safety systems.

Fall-through protection grid system
