Safety Systems for Vario Continuous Rooflights

Vario fall-through protection systems provide safety on the roof

Explore our range of fall-through protection systems - from lightweight retrofittable systems to extremely robust multifunctional protection

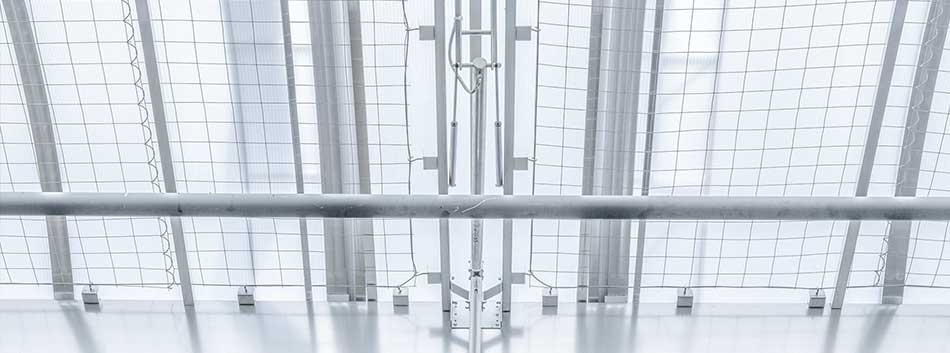

LB-DSL filigree steel safety grid

The LB-DSL continuous rooflight fall-through protection is a galvanised steel safety grid for installation in the course of continuous rooflight assembly work.
This permanent and fully effective system guarantees the safety of work areas and traffic routes on the roof and ensures compliance with all relevant standards and regulations.

Due to its filigree steel construction, the LB-DSL safety grid has an appealing appearance, while providing optimum protection from falls and allowing maximum daylight transmission. Suitable for use with all Vario Continuous Rooflights, and available in widths of 1200mm to 6200mm.

LB-DSL Filigree steel safety grid

LB-SR steel tube system with cross beam

The LB-SR continuous rooflight fall-through protection is a robust steel tube structure with cross beams. It provides optimum protection against falling through the continuous rooflight and opened continuous rooflight flaps. Designed for installation during continuous rooflight assembly, it can also be installed in the course of retrofitting, if required. It provides permanent and fully effective protection in accordance with relevant standards and regulations, including statutory regulations for work safety on flat roofs. Suitable for use with all Vario Continuous Rooflights, it can be provided in widths of 1700mm to 2700mm.

Download leaflet (PDF)
LB-SR steel tube system leaflet

LB-SR Steel tube system with cross beam

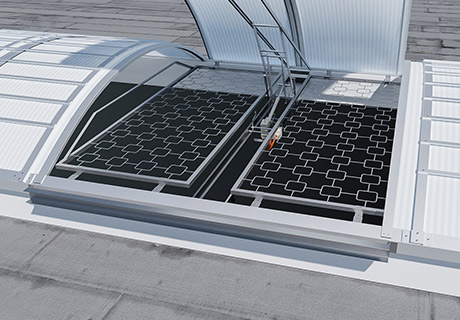

LB-DDS steel grid system

LB-DDS is a lightweight fall-through protection system. Provided as a completely pre-assembled safety steel grid, it offers quick on-site installation and is ideal when retrofitting Vario continuous rooflight flaps, as it allows for installation without removing the glazing.

It provides excellent protection from falls and fulfils compliance with all current standards and regulations for safeguarding workplaces and traffic routes on flat roofs.

Suitable for Vario barrel vault continuous rooflight flaps.



LB-SR Steel tube system with cross beam

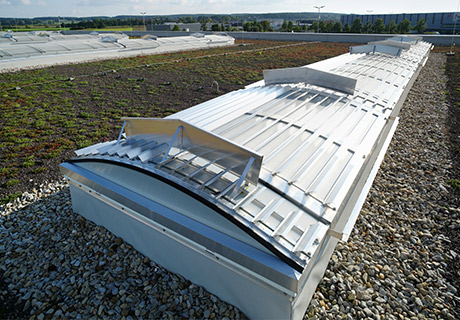

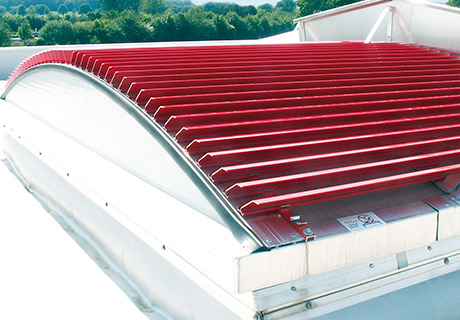

Vario Protect - the multifunctional safety and sun protection system

Vario Protect - the multifunctional safety and sun protection system

Vario Protect is a light-weight multifunctional protection system against falling through, excessive thermal radiation and harsh weather conditions, all at the same time.
The intelligent profile design comprised of aluminium slats with spacing of 60 or 120 mm also prevents daylight and seasonal glare affects, thermal input and simultaneously promotes light input when the sun level is low.

Suitable for all Vario Continuous Rooflights.

Download leaflets (PDF)
Vario Protect
Varo Protect 120 VWS

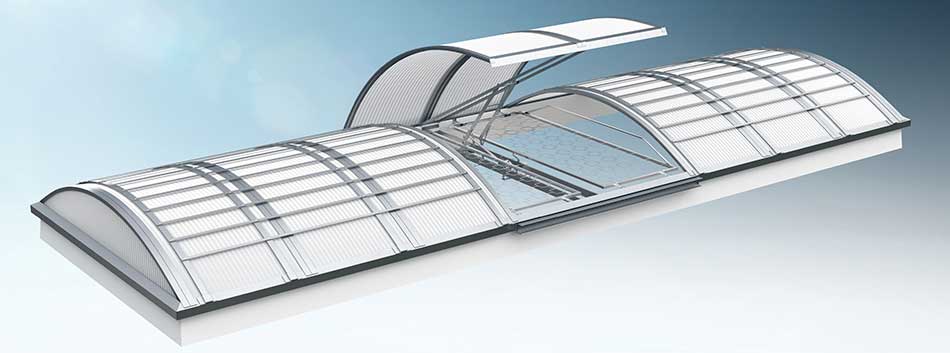

Vario Safeguard - comprehensive traffic route protection

Vario Safeguard - the comprehensive traffic route protection

Vario Safeguard is a comprehensive traffic route and fall-through protection system that is particularly suitable for safety-related refurbishment projects due to its low weight and easy installation from the roof.

Due to the fastening as a secondary system, without dismantling the glazing, leak tightness and drainage are unaffected and daylight yield is almost unchanged.

For maximum safety, Vario Safeguard can be combined with the LK-DDS protection system for rooflight flaps. Suitable for all Vario barrel vault continuous rooflights.

Download Leaflet (PDF)
Vario Safeguard leaflet
