Comfort Ventilation and Smoke and Heat Exhaust Ventilation (SHEV) for Vario Continuous Rooflights

Combine Vario Continuous Rooflights with a choice of ventilation systems

With a wide selection of flap types and compatible pneumatic or electrical opening devices, the Vario ventilation systems are suitable for use with Vario Continuous Rooflights. They can be used to provide daily fresh air ventilation, and can also be used for effective smoke and heat exhaust ventilation (SHEV).
Systems may be customised to fulfill specific project requirements and all devices are tested and certified to EN 12101-2.

Full flap - Vario-Firejet® 165J with 165° opening

Vario continuous rooflight with full flap and deflectors

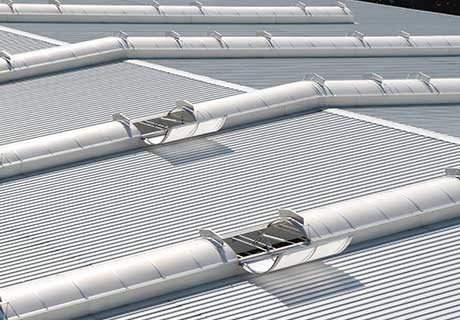

Vario continuous rooflight with smoke ventilation full flaps

Vario-Firejet® 165J comprises a single-piece flap that covers the entire dome.
It is suitable for use with the Vario Norm and Vario-Therm rooflights.

• Maximum nominal size: 2500 x 2040 mm
• Maximum Aa-value: 3.575 m²
• Pneumatic or electrical opening device Vario-Firejet®: 165J AZ (24V/48V or 230V/A)
• Functions: Open only (for SHEV), open-close (for SHEV and comfort ventilation)

Download leaflet (PDF)
Continuous rooflight full flaps 6.2.2

Side and cross beam flap - Vario-Firejet® Type 130J with 130° opening

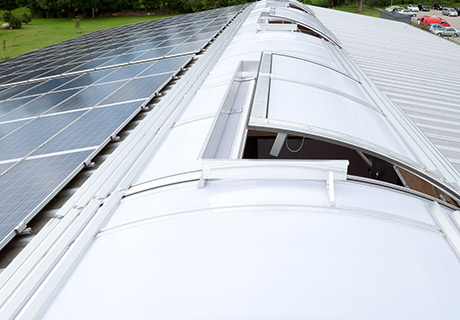

Vario continuous rooflight with side and cross beam flaps

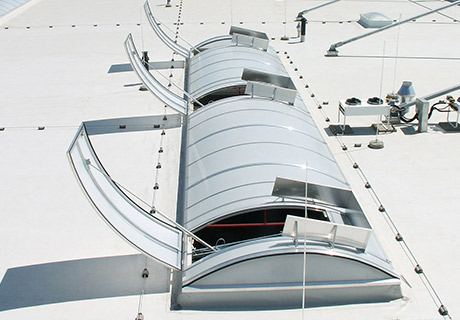

Vario continuous rooflight with smoke ventilation flaps and wind deflectors

Suitable for Vario Norm and Vario Therm rooflights

• Max. nominal size 250 x 204 cm
• Max. Aa-value = 3.315 m²
• Pneumatic or electrical opening device Jet-Vario-Firejet® 130J AZ (24V/48V)
• Functions: OPEN only (for SHEV), OPEN-CLOSE (for SHEV and comfort ventilation)

Double flap - Vario-Firejet® Type DK95° with 95° opening

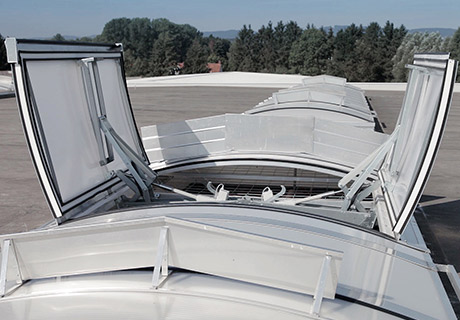

Vario continuous rooflight with double flaps

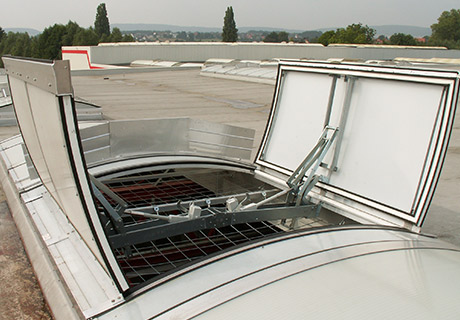

Vario continuous rooflight with smoke ventilation double flaps and fall-through protection

Suitable for Vario Norm and Vario Therm rooflights

• Max. nominal size 300 x 204 cm
• Max. Aa-value = 4.52 m²
• Pneumatic or electrical opening device Vario-Firejet® DK95° AZ (24V/48V)
• Functions: OPEN only (for SHEV), OPEN-CLOSE (for SHEV and comfort ventilation)

Single flap EKS - Vario-Firejet® Type 65J with 65° opening

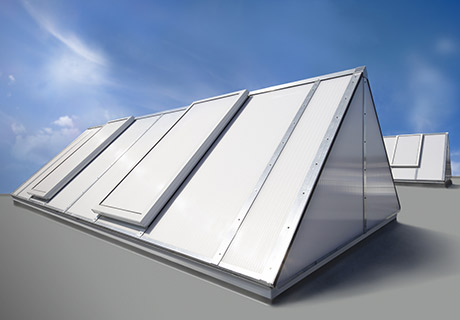

Vario Therm Saddle rooflight with single ventilation flaps

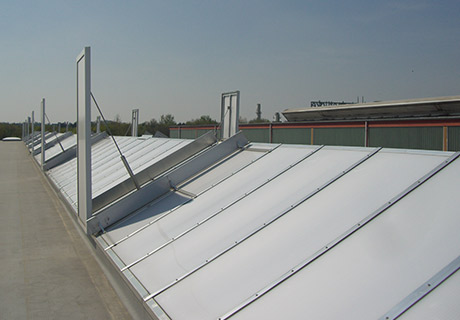

Vario Therm Saddle rooflight with single ventilation flaps EKS

The Vario-Firejet® Type 65J is a single flap EKS suitable for use with Vario Therm-S rooflights.

• Max. nominal size: 2500 x 2040 mm
• Max. Aa-value: 3.315 m²
• Pneumatic or electrical opening device: Vario-Firejet® 65J AZ (24V/48V)
• Functions: Open only (for SHEV), open-close (for SHEV and comfort ventilation)

Download leaflet (PDF)
Leaflets name 6.2.1

Louvered ventilation - Smokejet®

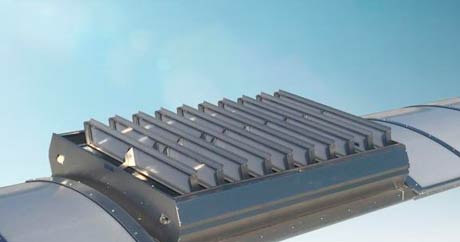

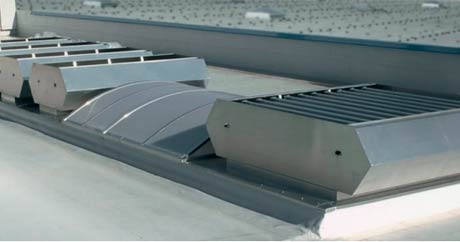

Vario continuous rooflight with louvered smoke ventilation

A high-performance louvre system or blind system, Smokejet® is an economical and option for providing large areas with fresh air or redirecting large volumes of warm air. It can be integrated as a SHEV device within the roof and is also compatible with all Vario Continuous Rooflights. A range of customisation options are available, allowing the system to be adapted to customer and project requirements.

• Roof slopes: Up to 10° for most applications; up to 30° or 45° when using with mono- or dual-pitched rooflights
• Installation: Can be installed either in the Vario Continuous Rooflights or with an upstand directly in the flat roof or thermal roof/insulated roof
• Pneumatic or electrical opening device

Please contact us for further information

Intelligent building control systems

Intelligent building control system Smartcontrol

Intelligent building control system Smartcontrol Complete

Our intelligent control systems can implement various functions and features, allowing a customised level of building management control - from basic to comprehensive, depending on requirements.

• Wind and rain automatic - for ventable daylight elements
• Smartcontrol Light - for air and sun control
• Smartcontrol Complete and Complete-Pro - for comprehensive control of light intensity, temperature, wind speed and humidity

Depending on what equipment in installed, these systems enable individual programming and the control up to ten drive groups. Optional expansion is possible with WLAN interface, KNX interface or a camera connection.
