Daylight Tube

Daylight Tube brings daylight throughout the building

Suitable for:

  • Flat and sloped roofs
  • Most applied roofing materials
  • Opening widths in roof of 270 mm or 370 mm (diameter)

Key benefits:

  • Intended for dark spaces without natural light
  • Minimal impact to building construction
  • Spots of diffused daylight
  • Accessories available for transporting the light to the desired location of the building
  • Optional artificial lighting and dimming modules

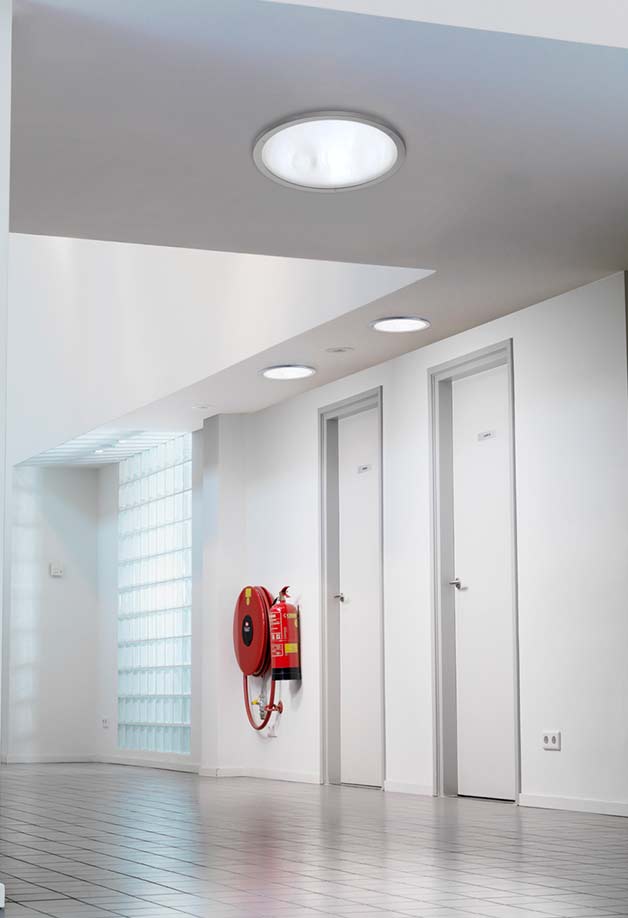

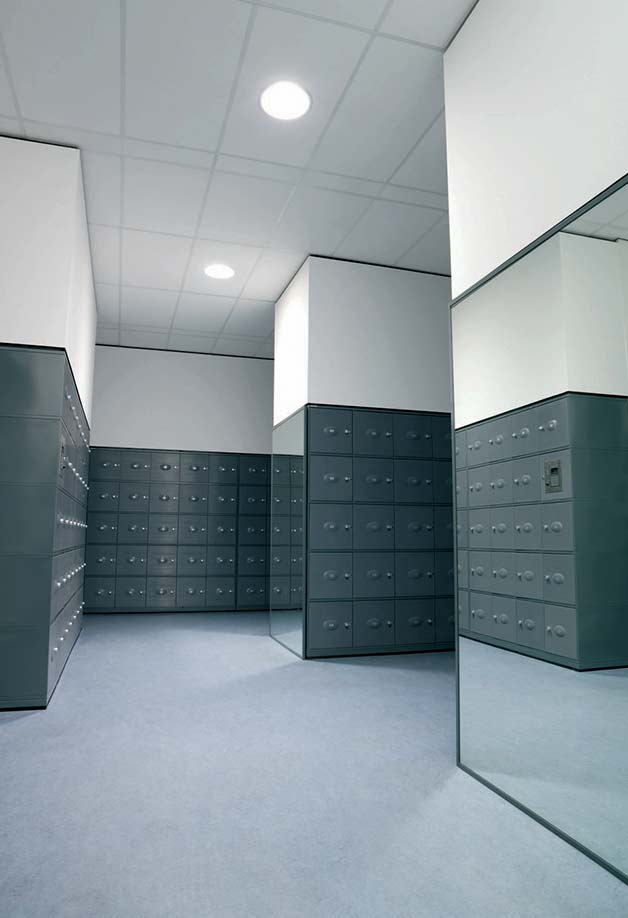

Interior view of a Daylight Tube installed in a hallway
See gallery

Related documents and links

Product details

  • In short
    The Daylight Tube consists of a dome rooflight with highly reflecting tubes and a ceiling diffusor that allow daylight to be brought into almost any room.

    Thanks to ingenious bends and extensions, daylight can even be brought in through an attic or loft with the output changing around the clock and throughout the year.

    The required light intensity depends on the tasks to be performed, but in general, one Daylight Tube in diameter 250 mm for 12 m² and one Daylight Tube in diameter 350 mm for 20 m² is advised.

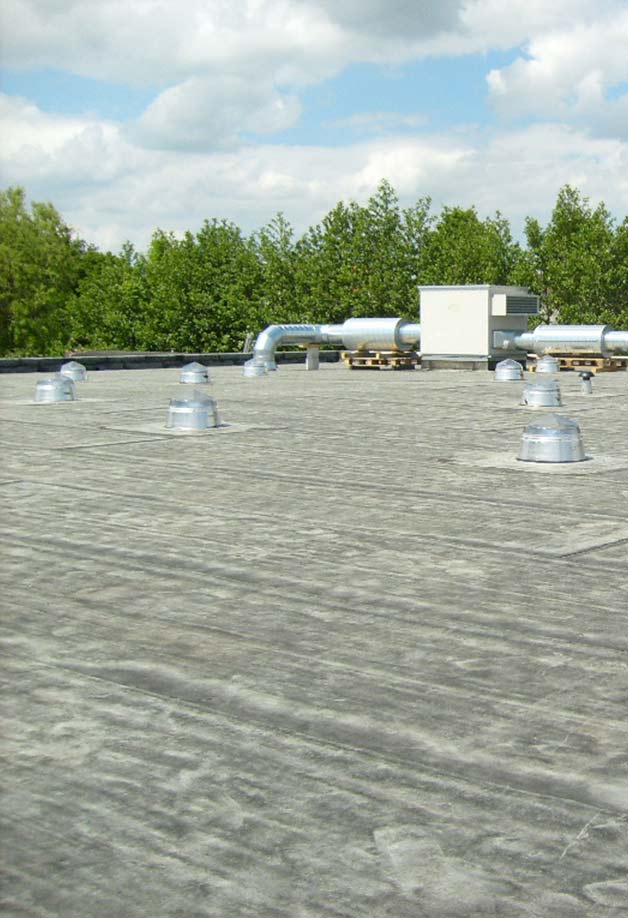

    Daylight Tube

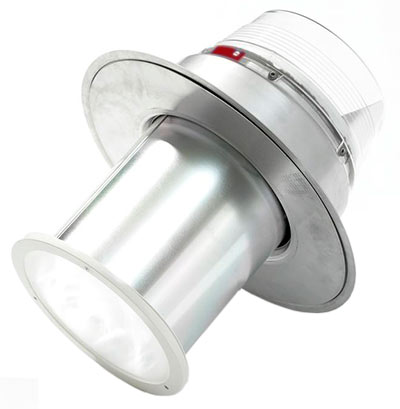

    Daylight Tube

  • Functions and sizes
    The Daylight Tube is available in two standard sizes with many accessories that allow for adaptability of the product to any building. Included are the following functions and sizes:
    • Diameter of 250 mm or 350 mm
    • Products available for flat and for sloped roofs
    • Availability in a fixed variant only
    • Thermal insulation by double skin dome, tubes and ceiling diffusor
    • Optional components such as extension tubes, elbow tubes, sleeves and installation brackets
    • Accessories for artificial lighting and daylight dimming are available

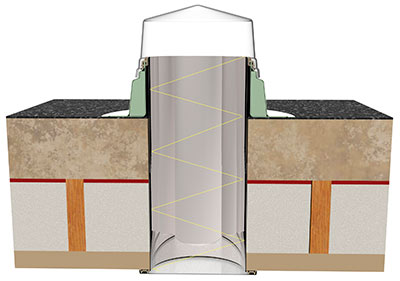

    Illustration of a Daylight Tube construction in a roof

    Daylight Tube construction

  • Details
    The Daylight Tube is supplied as an installation kit with prefabricated components that can easily be connected. A clear installation manual guides the installer through this process.

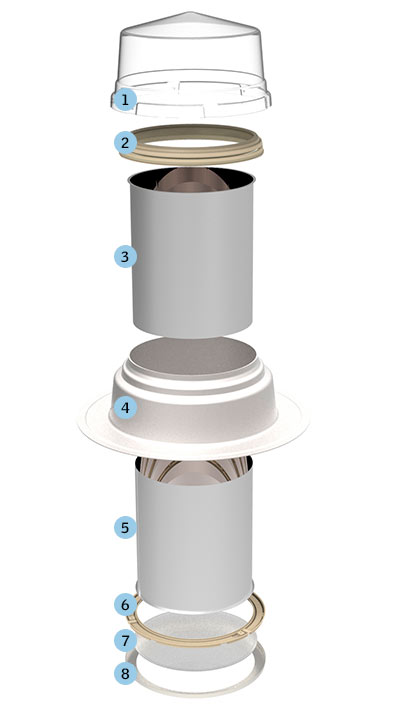

    Exploded view of a Daylight Tube with reference numbers for explanations
    1. Dome - double skin impact resistant polycarbonate dome
    2. Collar - with weather stripping
    3. Dome tube – aluminium with highly reflecting silver coating
    4. P-version:  Flat roof upstand – double wall aluminum with insulation
      H-version: Sloped roof slate - HDPE weathering slate with non-lead flashing
    5. Ceiling tube - aluminium with highly reflecting silver coating
    6. Fixation ring
    7. Diffusor – diffusing acrylic (PMMA)
    8. Ceiling ring – brushed alloy
  • Glazing
    As a standard, the  Daylight Tube is supplied with a double skin impact resistant PC dome and PMMA diffusor.

    U-value
    Diameter 250 mm: 3.1 W/m2K
    Diameter 350 mm: 2.6 W/m2K



    Inner dome of daylight tube

    Inner dome of daylight tube

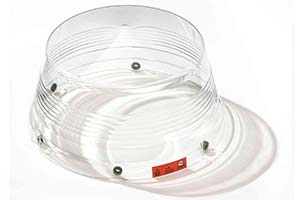

    Outer dome of daylight tube

    Outer dome of daylight tube

  • Technical drawings
