Stick system Easy

Create a daylight and ventilation solution with Stick system Easy. Stick system Easy is a predefined roof glazing solution that can be ordered as:

• Monopitch 10-60°
• Wall-mounted Monopitch 10-60°
• Ridgelight 15-45°
• Shed roof 30-60°

The thermally broken stick-system consists of aluminium profiles, vertical mullions and horizontal transoms that are assembled on site. The vertical and horizontal aluminium profiles are fitted with EPDM gaskets

On the outside, the profiles have pressure profiles fitted with EPDM gaskets that keep the insulating glass units in place. The profiles carry the structural load of the solution, thereby making the structure self-supporting. If required, the profiles can also be fixed to a steel, concrete or wooden sub-structure.

The mullions and transoms have a 60 mm profile width. The height of the profiles can be between 60 mm and 120 mm. This is determined by the span width, taking the solution self-weight and predefined external loads into consideration.

The system offers a controlled and realiable drainage over two levels.

Guaranteeing both products and installation, we manufacture, deliver and install your Stick system Easy roof glazing solution.

Monopitch 10-60°

Wall-mounted Monopitch 10-60°

Ridgelight 15-45°

Shed roof 30-60°.

The width of the upstand construction must be at least 100 mm and in the same angle as the skylight. It is the customer's responsibility to have a static calculation of the upstand done by a static engineer.
The system is applicable with maximum snow load of 560 N/m² and a maximum wind load of 850 N/m².

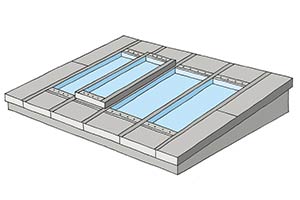

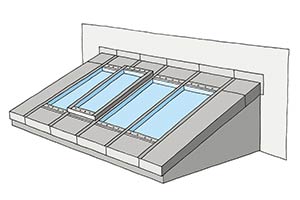

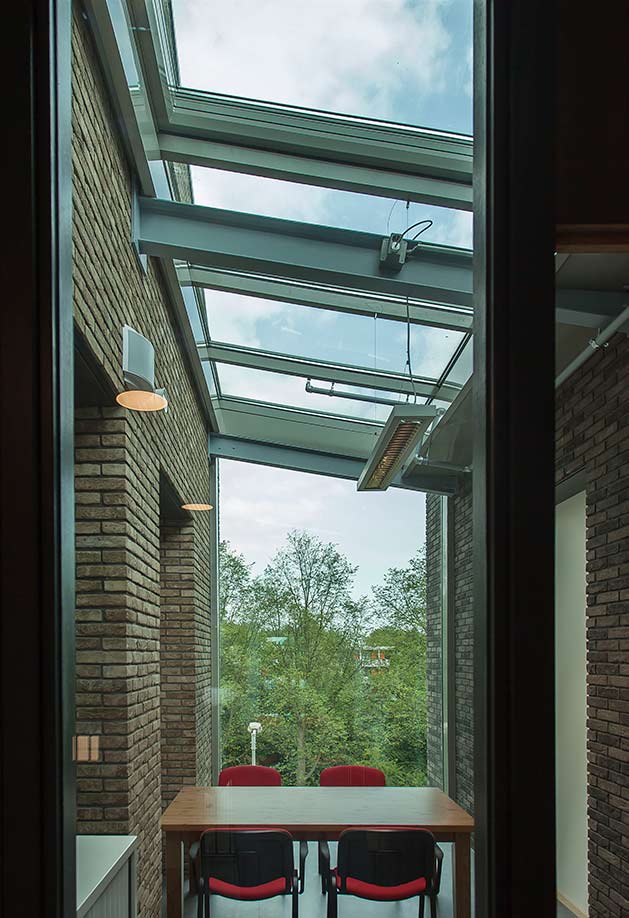

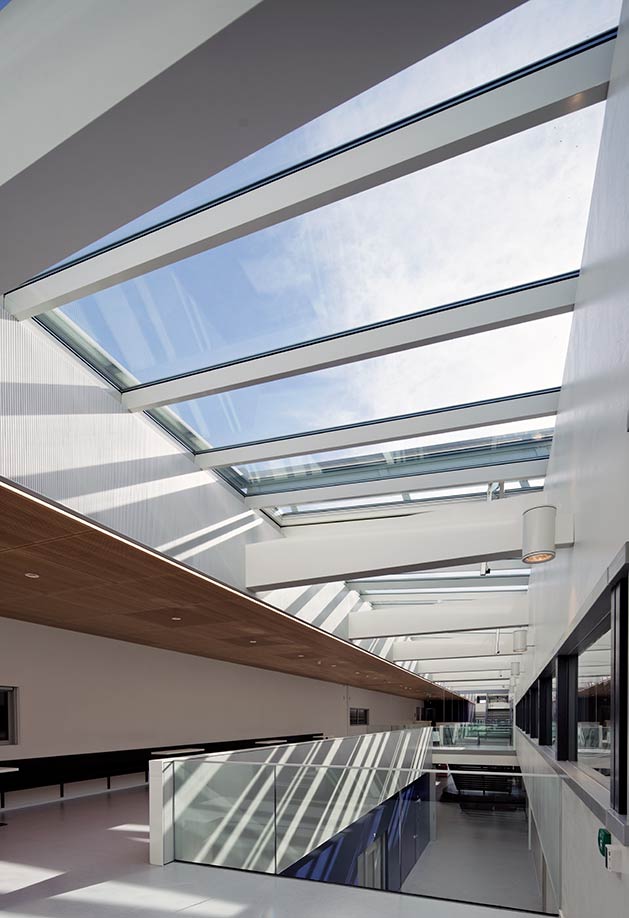

Monopitch

Standard or wall-mounted
Solution installation pitch 10-60°
Upstand width (inclined outer dimension): Max 2600 mm
Module width: Max 1000 mm

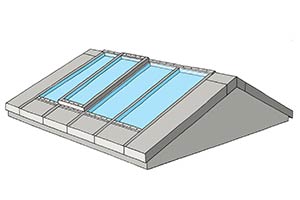

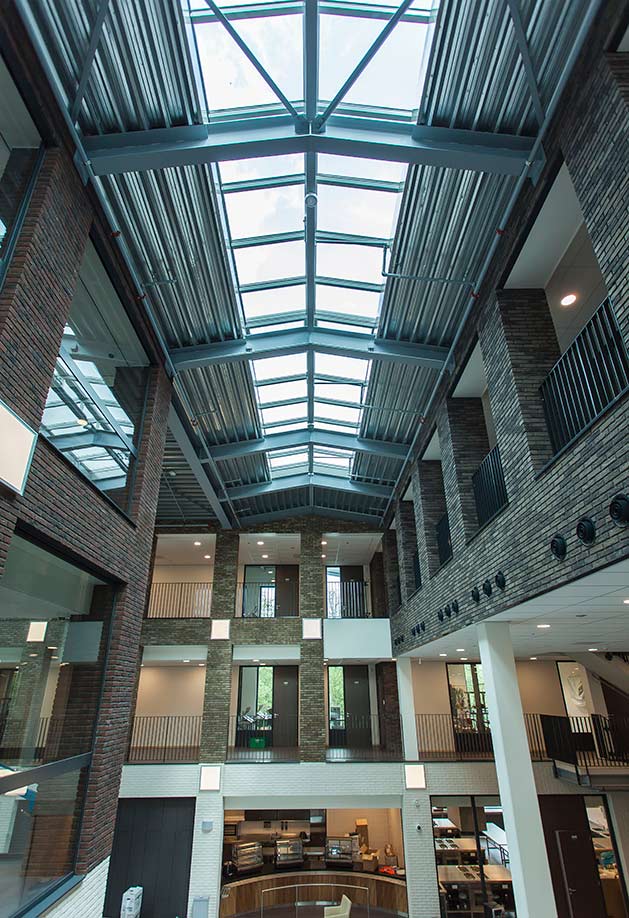

Ridgelight

Solution installation pitch 25-45° (standard profiles)
Solution installation pitch 15-25° (steel reinforced top profiles)
Upstand width (outer dimension): Max 4500 mm
Module width: Max 1000 mm
Vertical glass gable optional

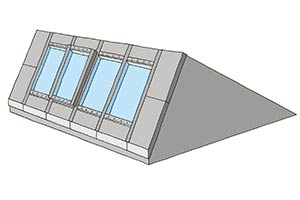

Shed roof

Solution installation pitch 30-60°
Upstand width (outer dimension): Max 4500 mm
Module width: Max 1000 mm
Vertical glass gable optional

See size options

VENTRIA flaps are available for comfort and smoke ventilation, including dual function of both comfort and smoke ventilation.
VENTRIA 3 flap, constructed from high-quality aluminium profiles, can be used both as a top-hung and bottom-hung solution for daily comfort ventilation. The flap can also be used as a bottom-hung solution for certified smoke and heat exhaust ventilation that is CE-marked according to EN 12101-2. Both top-hung and bottom-hung solutions can be installed as a single or double flap.

Flaps for comfort ventilation can be with either electrical (24 V or 230 V) or pneumatical operation. However, flaps for smoke ventilation can only be electrically operated.

Stick System ventilation flaps have a recommended minimum installation height of 2.5 m above floor level (inside) and ground level (outside). In case of installation of the ventilation flaps below that level, safety measures must be applied by the user to prevent serious injury.

By ordering a stick system solution containing ventilation flaps to be placed within reach i.e. below 2.5 m above floor/ground level, delivered and installed by the VELUX Group, the user acknowledges to have been made specifically aware of the regulatory requirements concerning entrapment protection and inherent hazards, and the user takes full liability on application of adequate safety measures. No instruction or measure can eliminate the inherent hazards resulting from installation heights below 2.5 m. Measures could for instance be to install a motion sensor that is able to disconnect power from the control unit in case of any movement in the immediate vicinity of the Stick System ventilation flaps.

The mullions and transoms have a 60 mm profile width. The height of the profiles can be between 60 mm and 120 mm and is determined by the span width, taking the solution self-weight and predefined external loads into consideration.

The mullions and transoms are fitted with EPDM gaskets. Externally, the profiles have aluminium covers and pressure profiles fitted with EPDM gaskets that retain the insulating glass units in place. Continuous insulation strips made of XPS foam placed between the glazing units combined with the EPDM gaskets provide an advanced thermally broken system.

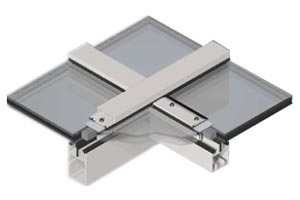

Transom and mullion joint

Stick system Easy is available with a standard double-glazing unit with a total thickness of 30 mm.

• Insulating glass unit with Ug values down to 1.0 W/m²K
• Laminated inner safety glass
• Outer float glass
• Sun protection coating (optional)
• Printed glass (optional)
• Photovoltaic glass (optional)

Read more about glazing options

Glazing example, low emissivity coating

The VENTRIA flaps for smoke ventilation are CE-marked according to EN 12101-2.
