Size options for Stick Systems

The stick-glazing system provides almost unlimited design freedom when it comes to sizes

The profile heights and/or the supporting structure is dimensioned according to span width, taking solution self-weight and external loads into consideration. The complete solution is statically calculated by our engineering specialists and verified by the customer depending on the use and building situation.

• Stick system: Profile height options between 35 mm and 190 mm
• Stick system Easy: Profile height options between 60 mm and 120 mm
• Top-mounted stick system: The sub structure is dimensioned to carry the daylight solution size

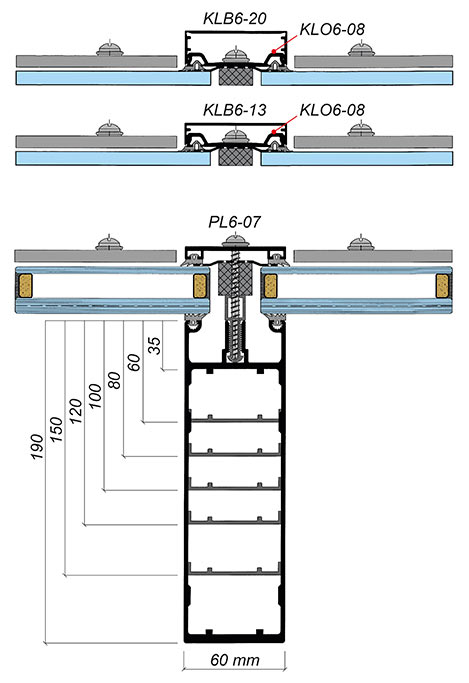

Stick System mullion

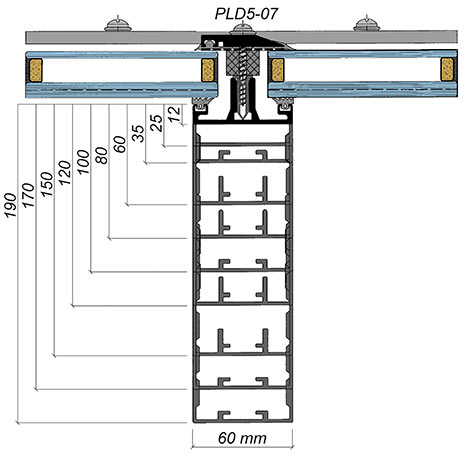

Stick System transom

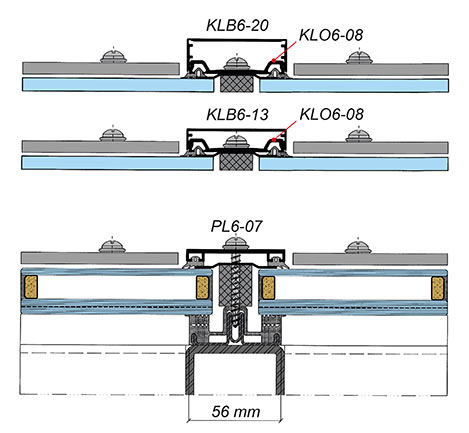

Top-mounted stick system mullion

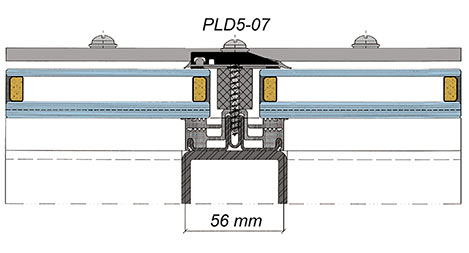

Top-mounted stick system transom

Stick system Easy come in predefined solutions in limited sizes

The aluminium profile height for mullions is dimensioned according to the size of the skylight. Max. module width 1000 mm.
The system is applicable with maximum snow load of 560 N/m² and a maximum wind load of 850 N/m²

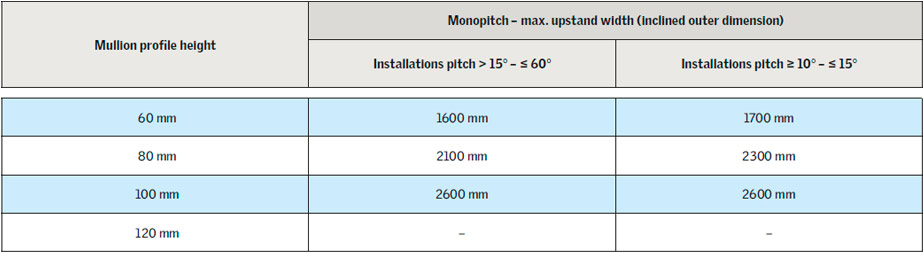

Monopitch

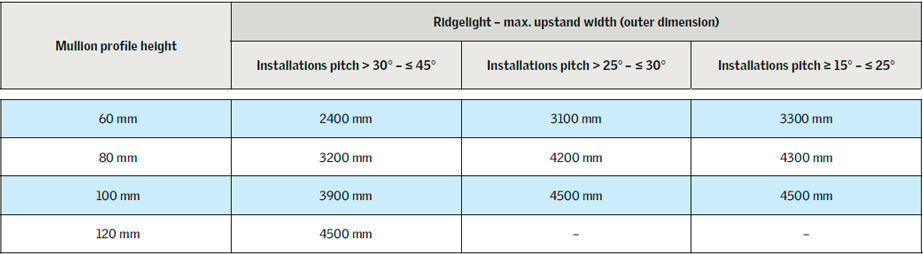

Ridgelight

The Ventria flaps are also dimensioned according to external loads and solution inclination, see more in our section on Comfort and smoke ventilation.

Shed roof

Please contact us for more information
