Special Dome Rooflights

A custom-fitted dome rooflight solution for e.g. the printing industry, exhibitions halls and theatres.

Variants
Whether in need of heat- and/or sound-insulation, you will find the optimal product for every construction task. The dark aluminium flaps are available in different variants, sizes, functionalities and RAL colours. The combination of different high-quality materials enables multiple extremely flexible solutions in terms of robustness and fall-through safety.

Technology/energy efficiency
The dark aluminium flap in sandwich constructions is thermally separated by the stable fan frame made of hard PVC and insulated with 40 mm or 80 mm thick mineral wool. This makes the dome rooflight quite energy efficient.

Functionality
The dark aluminium flaps are ideally suited for efficient SHEV in case of fire and also suitable for daily ventilation. With accessories such as additional sound reduction material, insect protection or roof access devices, there is a large range of usability options.

Renovation
The dark aluminium flaps can be used in new buildings as well as renovation projects.

Fall-through safety
Dark aluminium flaps are fall-through safe because of the robust and durable material used.

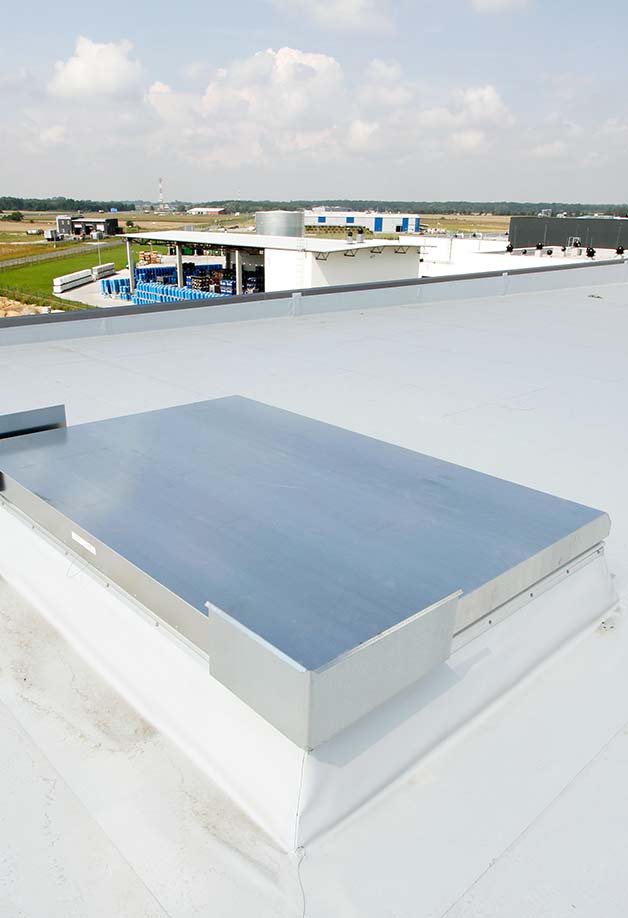

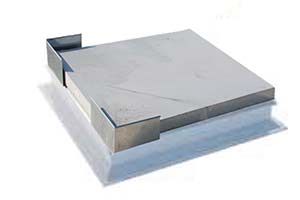

Dark aluminium flap

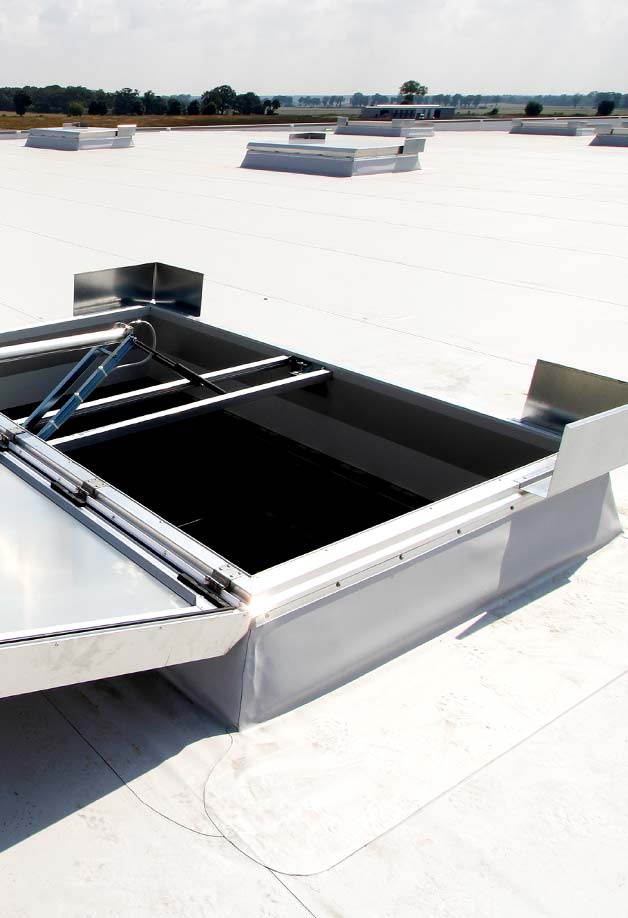

SHEV dome

Special Dome Rooflights are available in various standard sizes and with different main functionalities.

Venting Special Dome Rooflights
This comfort venting option is available with a huge variant of opening devices, allowing you to enjoy fresh air through your roof dome window whenever you want to. The venting domes can be manually operated by crank handle or electric actuators that lift a dome by 300, 500 or 750 mm.

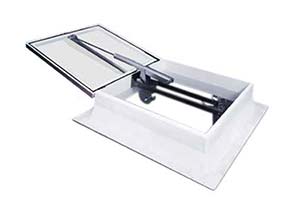

Special SHEV Dome Rooflights
The purpose of smoke and heat exhaust ventilation systems (SHEV) is to prevent personal injury and reduce damage to property. Pneumatical (CO₂) and electrical (24V/48V/230V) systems are available with different functionalities and performances - each tested and certified according to EN 12101-2. Full multifunctionallity SHEV Dome Rooflights can be combined with electrical actuators for natural ventilation or be used as venting units.

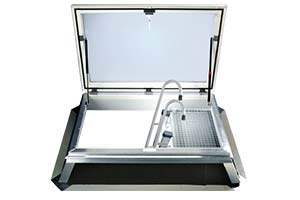

Special Dome Rooflights with Roof Access
There are numerous reasons to enter a flat roof. A comfortable and safe way of accessing the roof is through a Special Dome Rooflights. Roof Access devices for dark aluminium flaps offer mechanical or electrical solutions that are invisible from the outside.

Sizes
See size possibilities

SHEV dome

Roof access

The different insulated dark aluminium flaps provide various thermal insulation opportunities. The specific technical values can be found in the product leaflets.

Dark aluminium flap with 40 mm insulation
For a roof opening device without daylight, a Special Dome Rooflight such as a dark aluminium flap with 40 mm insulation with fall-through protection is the most economical solution.

Dark aluminium flap with 80 mm insulation
An effective improvement of energy efficiency can be achieved with double insulation.

Dark aluminium flap with 80 mm insulation and sound reduction
80 mm insulation, together with an effective sound reduction accessory, enables high energy efficiency and good sound reduction.

Dark aluminium flap
