Hybrid Dome Rooflights

Hybrid Dome Rooflights offer large amounts of daylight, outstanding heat insulation as well as reduction of nuisance noise and intruders. All while improving the overall energy efficiency, safety and convenience in your building.

Our Hybrid Dome Rooflights are mountable on most common construction upstands and can be combined with a variety of dome rooflight designs. The Hybrid Dome Rooflights are designed for easy installation when delivered as a pre-assembled



product or as an upgrade for already installed dome rooflights.

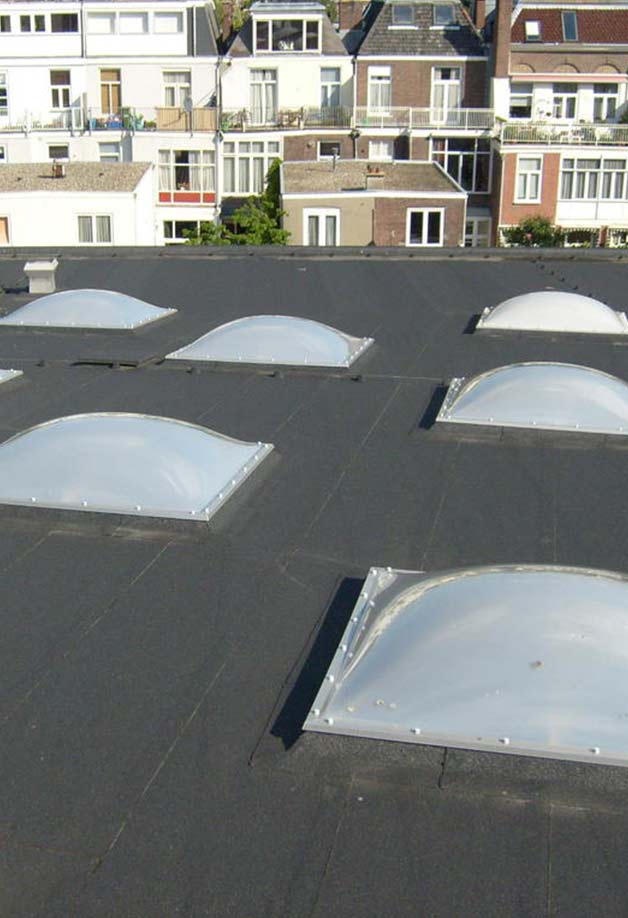

Hybrid dome

Hybrid Dome Rooflights are available in a wide range of standard sizes and functionalities:

• Fixed, comfort and smoke venting options
• Improved thermal insulation by PC multiwall sheets or insulation glass
• Fall-through protection and improved sound insulation by laminated glazings
• Standard dome rooflight features such as sun or hail protection
• Can be combined with a variety of dome rooflight upstands

Sizes
See size possibilities

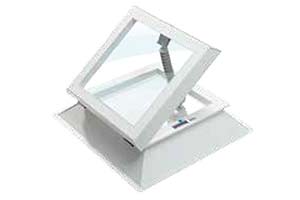

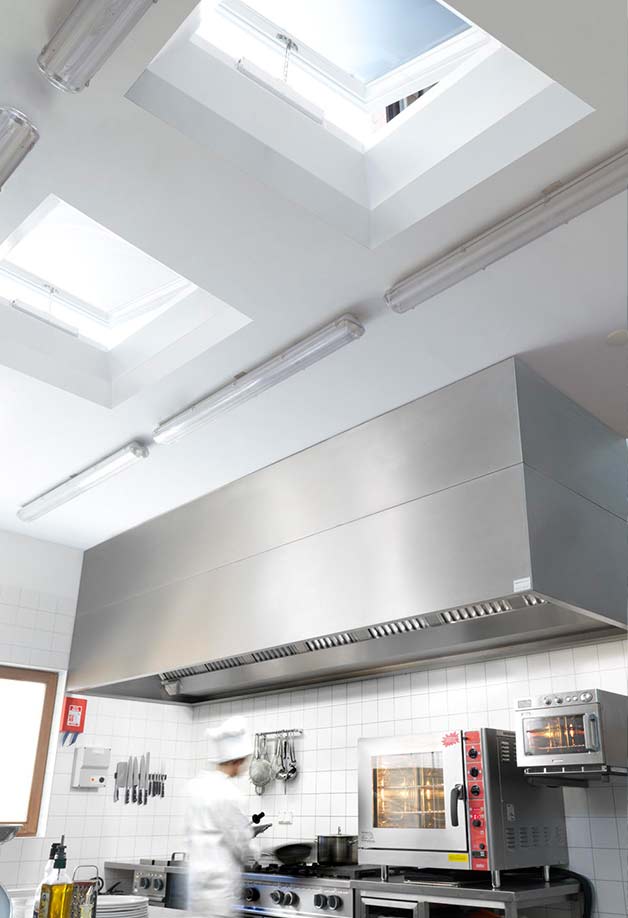

Venting dome

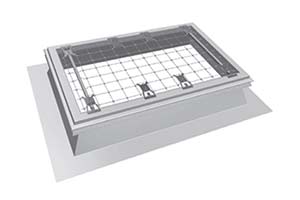

Top-mounted fall-through protection system

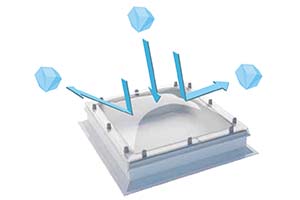

Impact resistant

The Hybrid Dome Rooflight solution is available in the three following variants:

• Hybrid Dome Rooflight with insulation glass
• Hybrid Dome Rooflight with a 16mm PC multiwall sheet
• Hybrid Dome Rooflight with safety glass

The glazing is fitted in a dedicated PVC frame that can be installed on any available upstand.

Hybrid Dome Rooflight with insulation glass
Standard Dome Rooflights can be combined with clear insulation glass 4-15-33.2.

Hybrid Dome Rooflight with a 16mm PC multiwall sheet
Composed of high-quality UV-resistant 2-skin dome rooflight opal/clear and an internal 7-skin polycarbonate sheet PC-S7P 16 opal/clear.

Hybrid Dome Rooflight with safety glass
A PMMA 2-skin dome rooflight with a lower placed 8 mm laminated glass sheet with clear or matt PVB foils.

A PMMA 4-skin dome rooflight with a lower placed 8 mm laminated glass sheet with clear or matt PVB foils.

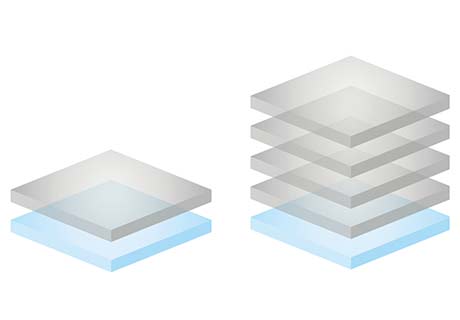

Example of hybrid dome glazing constructions

Technical specifications for the Hybrid Dome Rooflights can be found below.

Hybrid Dome Rooflight with insulation glass
Light transmission value of glass: LTA 79%; g-value 59%;
Heat transfer coefficient of glass panel: U_g=1,1 W/m²K.
Heat transfer coefficient of assembly up to: U_w= 0,79 W /m²K / U_g 0,53 W /m²K according to EN ISO 10077-2.
Burglary resistant according to NEN 5096:2012+A1:2015 EN 1627:2011 Class 2 (RC2)

Hybrid Dome Rooflight with a 16mm PC multiwall sheet
Heat transfer coefficient:
U_N,LK = 1,99 W/m²K according to DIN EN 6946
U_t = 2,0 W/m²K according to DIN EN 1873
Airborne sound reduction value: R_w = 36 dB
Light transmission value:
- For opal: 44% / clear: 65%
Total energy transmission:
- For opal: 53 % / clear: 72 %

Hybrid Dome Rooflight with safety glass
PMMA 2-skin dome rooflight with a lower placed 8 mm laminated glass
Safety glass according to EN 12600 1B1
Heat transfer coefficient:
U_N,LD = 1.17 W/m²K according to DIN EN 6946
U_t = 1.1 W/m²K according to DIN EN 1873
Airborne sound reduction value: R_w = 28 dB
Light transmission value:
- For opal: 38 % / clear: 48 %
Total energy transmission:
- For opal: 54 % / clear: 56 %

Hybrid Dome Rooflight with safety glass
PMMA 4-skin dome rooflight with a lower placed 8 mm laminated glass
Safety glass according to EN 12600 1B1
Heat transfer coefficient:
U-value = 1.2 W/m²K according to DIN EN 1873:2006 (acc. to DIN EN 6946)
U_t,hor = 1.2 W/m²K according to DIN EN 1873: 2014
U_rc,ref300 = 1,11 W/m2K according to DIN EN 1873:2014 (roof opening size 120 x 120 cm with 300 mm upstand JET ISO-THERM
Airborne sound reduction value: R_w ≥ 36 dB
