Step Longlight/Ridgelight

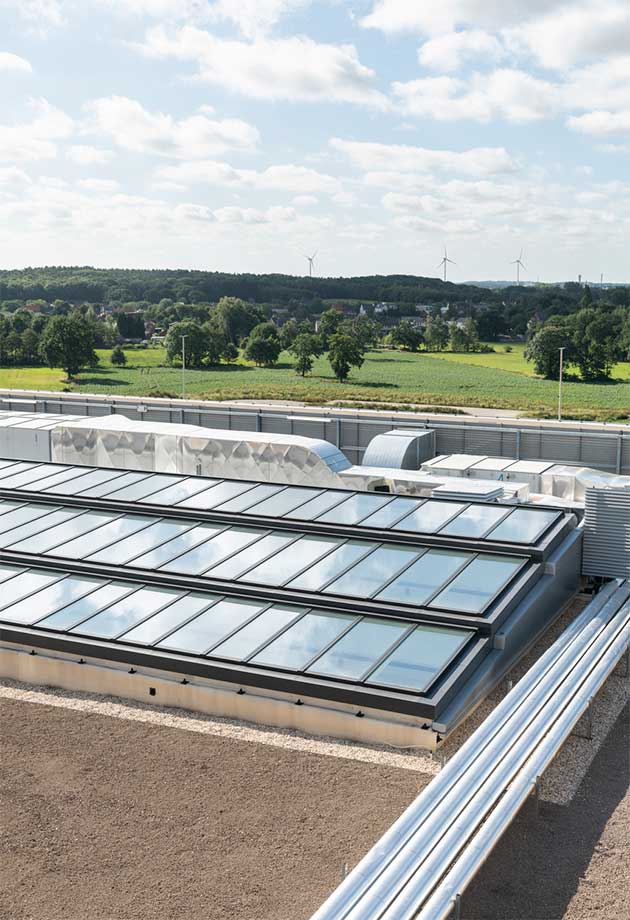

The solution consists of multiple rows of VELUX modular skylights connected as Step Longlights 5-25°, Step Ridgelights 25° or as Step Ridgelight 5-25° on Girder.

The rows are connected by a factory finished flashing that ensures drainage of water between the rows. The rows must be supported by structural beams on the inside of the building.

VELUX modular skylights are delivered with a 10-year guarantee on modules and flashings.

VELUX skylight specialists offer support throughout design, specification and installation, including design of structural beams. Please note that beams and sub-constructions are not included in the VELUX delivery.

Learn more about sub-constructions

View an interactive 3D cross section of the Modular Skylight solution.

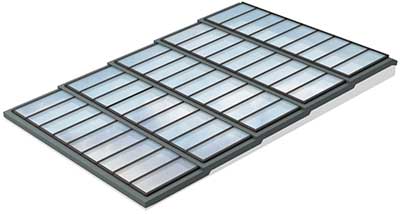

Step Longlight 5-25°

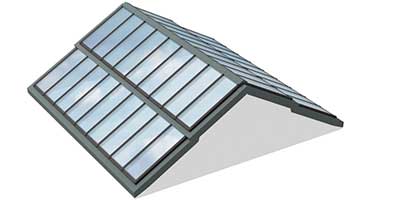

Step Ridgelight 25°

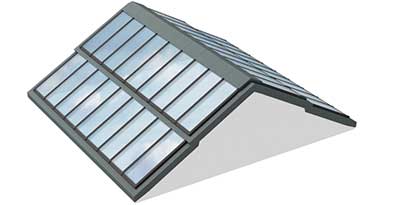

Step Ridgelight 5-25° on Girder

VELUX modular skylights are available in a wide range of standard sizes and functionalities:

1. Fixed skylight module

2. Motorized comfort venting skylight module opens up to 410mm

3. Motorized smoke venting skylight module opens up to 700mm in less than 60 seconds

Sizes

See size possibilities
Go to Size grid

Venting skylight modules have a recommended minimum installation height of 2.5 m above floor level (inside) and ground level (outside).
In case of installation below that level, safety measures must be applied by the installer/user to prevent serious injury.

VELUX modular skylight system is a turnkey solution comprising prefabricated skylight modules with dedicated claddings, flashings and vapour barrier connection strip to allow for design of watertight rooflight and glass roof structures.

Comfort ventilation is possible via an integrated chain actuator that can be controlled with VELUX INTEGRA® system or with your preferred building management system. Smoke ventilation can only be controlled with your preferred building management system.

For optimal daylight and heat control consider internal roller blinds that can be pre-mounted from the factory.

View an interactive 3D sample of the Modular Skylight system

Pre-fabricated modular skylights from VELUX come with perfectly matching cladding, flashing and roller blinds.

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

• Aliquam congue velit ut dictum fringilla.
• Ut posuere ante ut pretium imperdiet.
• Etiam viverra felis nec dui dictum faucibus
• Phasellus interdum odio imperdiet arcu dictum, dapibus eleifend orci facilisis.

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

• Aliquam congue velit ut dictum fringilla.
• Ut posuere ante ut pretium imperdiet.
• Etiam viverra felis nec dui dictum faucibus
• Phasellus interdum odio imperdiet arcu dictum, dapibus eleifend orci facilisis.

In combination with low energy glazing units, the modular skyligths are able to achieve one of the lowest overall U-values for frame and glazing assembly in the skylight market (Uw values down to 0.86 W(m2/K)).
