Comfort and Smoke Ventilation for Grillodur^® Daylight System

Grillodur^® rooflight flap types, combined with corresponding pneumatic or electrical opening devices, can provide daily comfort ventilation and effective smoke and heat exhaust ventilation (SHEV). All devices are tested and certified in accordance with DIN EN 12101-2.

Grillodur^® continuous rooflight illustration with open flap

Explore ventilation system components that can fulfil project requirements

Single flap

• For use with barrel vault Grillodur^® rooflights
• Standard size: 1100 x 1880 mm
• Max. Aa-value = 1.551 m²
• Pneumatic or electrical opening devices
• Functions: OPEN only (for SHEV), OPEN-CLOSE (for SHEV and comfort ventilation)
• Tested and certified in accordance with DIN EN 12101-2 and CE-marked

Download leaflet (PDF)
Brochure/leaflet name - Link to brochure 6.2.3

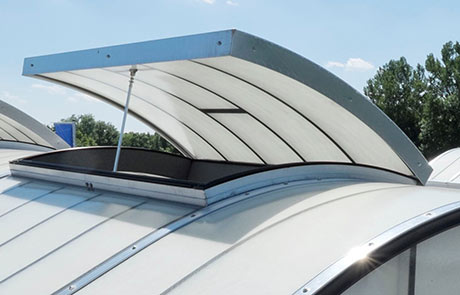

Grillodur^® vaulted continuous rooflights with single flaps exterior view

Double flap

• For use with barrel vault Grillodur^® rooflights
• Standard size: 2300 x 1880 mm
• Max. Aa-value = 3.243 m²
• Pneumatic or electrical opening devices
• Functions: OPEN only (for SHEV), OPEN-CLOSE (for SHEV and comfort ventilation)
• Tested and certified in accordance with DIN EN 12101-2 and CE-marked.

Download leaflet (PDF)
Brochure/leaflet name - Link to brochure 6.2.3

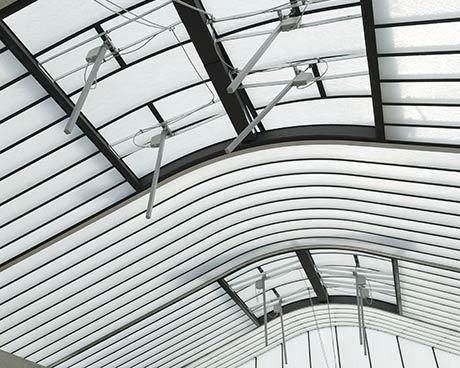

Grillodur^® vaulted rooflight SHEV double flaps interior view

Flaps for mono- and dual-pitched rooflights

 Please contact us for more information about single and double flaps for mono- and dual-pitched Grillodur^® rooflights. We can help create a solution suitable for your project.

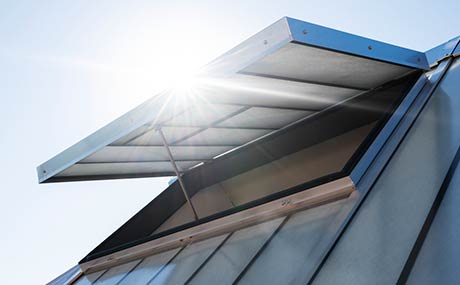

Grillodur^® vaulted continuous rooflights with single flaps

Actuators

A range of opening devices is available to meet specific project requirements:

• Pneumatic (CO2) actuator: G9 System => SHEV
• Pneumatic (CO2) actuator: G19 System => SHEV and comfort ventilation
• Combination actuators: G29 System => SHEV (pneumatic) and comfort ventilation (230V)
• Electrical actuators: 24V System => SHEV (24V) and comfort ventilation (24V). All devices are tested and certified in accordance with DIN EN 12101-2 and CE-marked

Download leaflet (PDF)
Brochure/leaflet name - Link to brochure 6.2.3

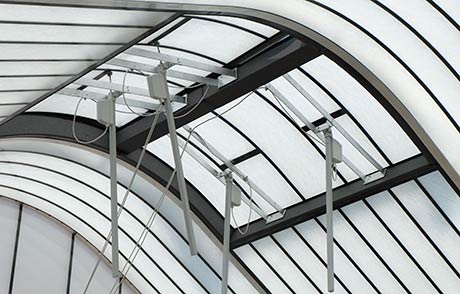

Grillodur^®SHEV actuators

Louvered ventilation system

 A high-performance louvre system or blind system is an economical option for providing fresh air to large areas, or for redirecting large volumes of warm air. It can be integrated with the roof as a SHEV system and is compatible with all Grillodur^® continuous rooflights.

Customisation options allow the system to be adapted to meet specific project requirements. The system can be installed in the Grillodur^® rooflights, or in the flat roof with an upstand. It is available with pneumatic or electrical opening devices.

Please contact us for further information and individual consultation.

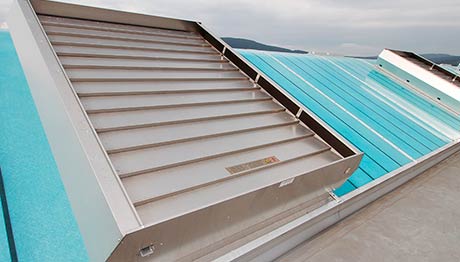

Grillodur^® vaulted continuous rooflight with louvered ventilation

Intelligent building control systems

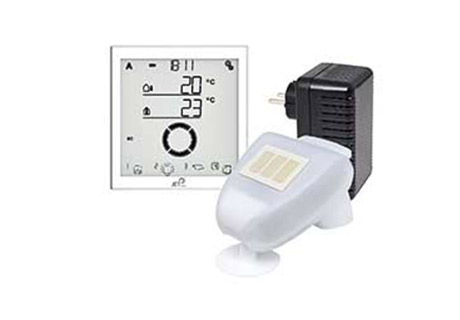

Intelligent building control system Smartcontrol

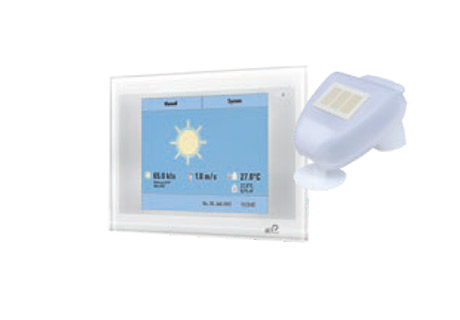

Intelligent building control system Smartcontrol Complete

Our intelligent control systems can implement various functions and features, allowing a customised level of building management control - from basic to comprehensive, depending on requirements.

• Wind and rain automatic - for ventable daylight elements.
• Smartcontrol Light - for air and sun control.
• Smartcontrol Complete and Complete-Pro - for comprehensive control of light. intensity, temperature, wind speed and humidity.

Depending on what equipment in installed, these systems enable individual programming and the control up to ten drive groups. Optional expansion is possible with WLAN interface, KNX interface or a camera connection.

Download brochure (PDF)
Brochure name 3.8.1  - same as brochure for Vario
