Daylight and Heat Control for Modular Rooflights

Explore our products to control daylight and heat

Control daylight and heat to create the best indoor climate. Modular Rooflights are designed to optimise the indoor climate and offer options to control daylight and heat.

Roller blinds

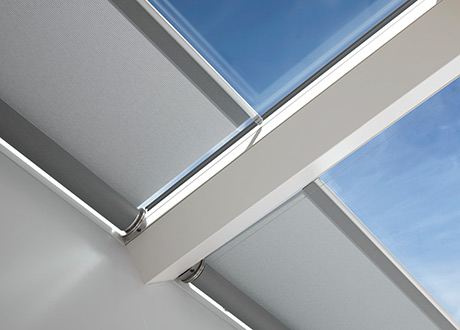

Roller blind at Linearlight

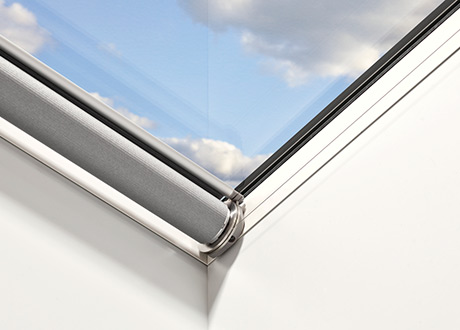

The motor for roller blind operation is hidden inside the rod

The internal roller blind RMR is designed for installation with VELUX Modular Rooflights. The blind protects against heat and glare and helps to control the amount of light in the building. The roller blind is available in any height from 725 mm up to 3,000 mm and in width from 600 mm up to 1,000 mm. It can be oriented in the top-bottom or or side-side direction of the rooflight.
See size grid



The roller blind is available for Monolight and Linearlight both fixed and venting, including burglary-resistant modules. To support fast and safe installation of VELUX Modular Rooflights, it is possible to order roller blinds with hidden pre-wiring and completely pre-mounted from the factory, except for burglary-resistant modules.

The blind consists of four wheels, one in each corner of the rooflight upstand and two steel wires at the side of the blind. The two wires pull a lightweight polyester fabric available in three commonly used colours.

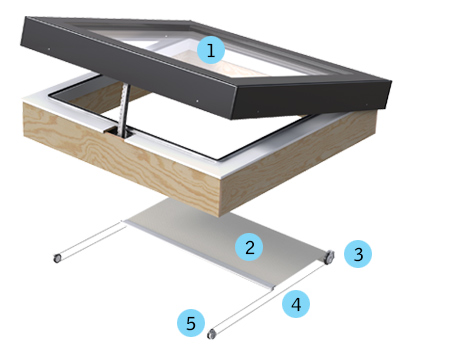

Product details

1. Datalabel
2. Fabric
3. Top wheel
4. Wire
5. Bottom wheel

VELUX roller blinds are electrically operated and can be controlled using either VELUX INTEGRA® or Open System ±24V (OS ±24 V DC).

Fabric colors

Grey
RMR 8805

White
RMR 8806

Black
RMR 8807

Colour simulation

Depending on the choice of roller blinds, the penetrating light will be affected together with the natural colouring of the interior. The blinds protect against heat and glare and help to control the amount of light in the room.

Glazing with low emissivity coating (LowE) - No sunscreening

Glazing with low emissivity coating and Roller Blind RMR 8806, White

Glazing with low emissivity coating and Roller Blind RMR 8805, Grey

Glazing with low emissivity coating and Roller Blind RMR 8807, Black

The blind cloth of VELUX roller blinds is pulled on two tension steel wires on pulley wheels, which are accessible, when the roller blinds are installed on rooflights within reach and therefore can cause serious injury, if a person gets in contact with this during the electrical operation of the blind. VELUX roller blinds have a recommended minimum installation height of 2.5 m above floor level (inside) and ground level (outside). In case of installation below that level, safety measures must be applied by the installer/user to prevent serious injury. No instruction or measure can eliminate the inherent hazards resulting from installation heights below 2.5 m.

We recommend you to observe national regulations and consider if the planned specific use of the building requires that additional safety measures must be applied by the installer/user to prevent serious injury.

Glazing with sun protection coating

Daylight control with low emissivity coating solution

Daylight control with light sun protection coating solution
