Upstands for Dome Rooflights

Discover a variation of upstands for any roof structure

A large selection of upstands means that the right product is most likely available - irrespective of the type of roof on which a dome rooflight or flat roof window is planned to be assembled.

Metal upstands

For standard, energy efficient or SHEV use, metal upstands provide economical solutions with high availability and variability. Metal upstands are ideal for roofs covered with various types of roof-membranes.

1-skinned

Energy efficient

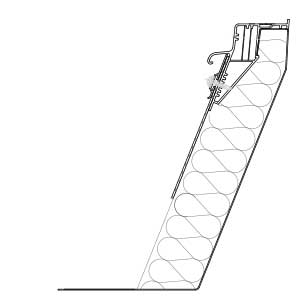

Cross cut illustration of a 1-skinned energy efficient metal upstand

ISO-THERM-Upstand-30

Metal upstands with a particularly well insulation from 60 mm mineral wool together with a thermal bridge free upstand top provide an excellent energy efficient product for both new buildings and renovation.

Heights available: 30, 40, 50 and 60 cm

Standard use

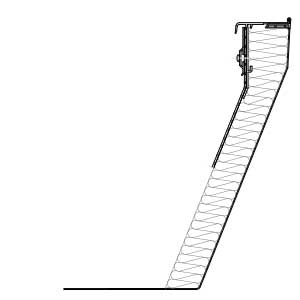

Cross cut illustration of a 1-skinned metal upstand for standard use

Metal-Upstand-TE-30

Metal upstands with an insulation from 30 mm mineral wool are ideal for an economical use in buildings with less requests regarding energy efficiency (e.g. low or not heated buildings).

Heights available: 30, 40 and 50 cm

SHEV optimised use

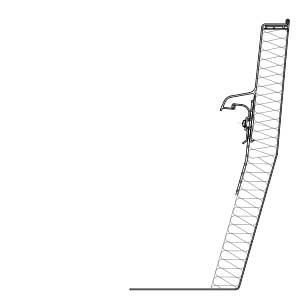

Cross cut illustration of a 1-skinned metal upstand optimised for SHEV use

Metal-SHEV-Upstand-30

Metal upstands, designed especially to be used in SHEV domes, are optimised in terms of SHEV performance and an integral part of the preventive fire protection of an industrial building.

Heights available: 30 and 40 cm

Metal extension upstand

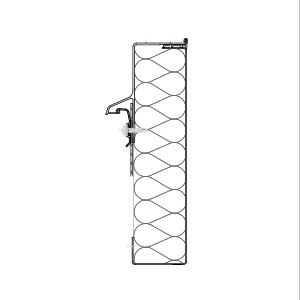

Cross cut illustration of a 1-skinned metal extension upstand for renovation

Metal extension upstand-15

Metal extension upstands are especially designed for renovation. Insulated with mineral wool and prepared for a safe roof connection, the upstands can be combined with accessories regarding Comfort- and/or SHEV ventilation.

Heights available: 15 cm

2-skinned metal compound upstands

Standard use

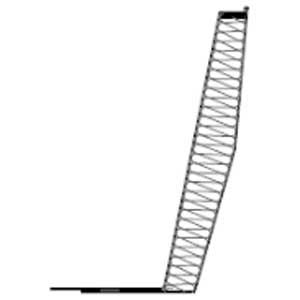

Cross cut illustration of a 2-skinned metal compound upstand for standard use.

Steel alu compound upstand 30

Metal compound upstands are designed to be used in metal roofs. With a particularly well insulation from 60 mm mineral wool combined with a thermal bridge free upstand top, Metal compound upstands are an excellent product for both new buildings and renovation.

Heights available: 30, 40 and 50 cm

SHEV use

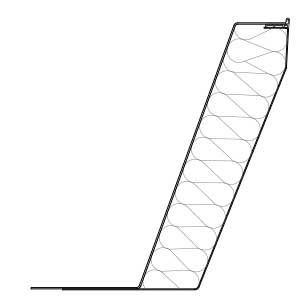

Cross cut illustration of a 2-skinned metal compound upstand for SHEV use

Steel alu compound SHEV upstand 30

Metal compound upstands are developed to be used in SHEV domes, making them ideal for metal roofs. The opstands are optimised to enhance SHEV performance.

Heights available: 30 and 40 cm

2-skinned GRP upstands

Upstands made from Glasfibre-Reinforced Plastic (GRP) are classic accessories in the dome rooflight and flat roof window environment. The upstands have proven to be effective and are popular in different applications, which make them ideal for smaller projects.

Versatile use

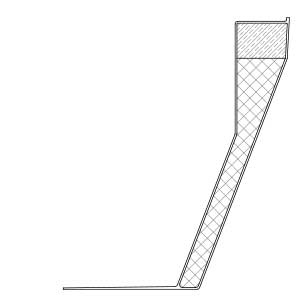

Cross cut illustration of a 2-skinned glassfibre reinforced plastic upstand for versatile use

GRP classic upstand 30

Classic GRP upstands represent a versatile use and provide interesting variants regarding insulation performance and useful accessories for easy installation.

Heights available: 15, 30 and 50 cm

SHEV use

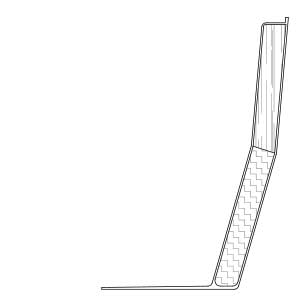

Cross cut illustration of a 2-skinned glassfibre reinforced plastic upstand for SHEV use

GRP SHEV upstand 30

GRP upstands are designed especially to be used in SHEV domes. The upstands are optimised to enhance SHEV performance and ideal for roofs covered with various types of roof-membrane.

Heights available: 30 and 45 cm

Standard use (daylight optimised)

2 skinned GRP upstands standard use

GRP upstand 30

GRP upstands are designed for maximum daylight entrance. They characteristically have a vertical upstand to provide as much as possible daylight.



Heights available: 30 - 50 cm

2-skinned GRP Compound Upstands

GRP alu compound upstands

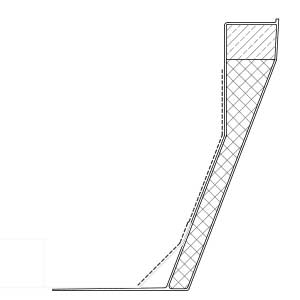

Cross cut illustration of a 2-skinned glassfibre reinforced plastic aluminium upstand for metal roofs

GRP alu compound upstand 30

Combining good insulation with safe installation, GRP alu compound upstands are designed to be used in metal roofs.

Heights available: 30, 40 and 50 cm

2-skinned PVC upstands

Upstands made from PVC are classic accessories in the dome rooflight environment. With a high availability, these upstands are ideal for smaller projects. Sufficient insulation and a variable application lead to an all-round product for industrial or public buildings.

Standard use

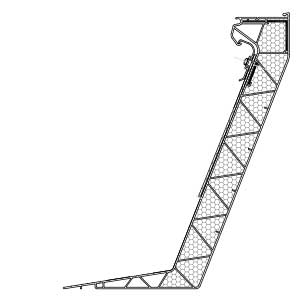

Cross cut illustration of a 2-skinned PVC upstand for standard use

PVC upstand 30

PVC upstands represent an all-round product with a broad use. With high availability and useful accessories for easy installation, these features are attractive alternatives.

Heights available: 15 and 30 cm

SHEV use

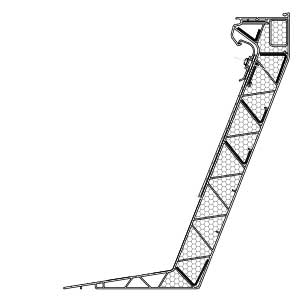

Cross cut illustration of a 2-skinned PVC upstand for SHEV use

PVC SHEV upstand 30

PVC upstands designed especially to be used in SHEV domes are optimised regarding SHEV requirements and ideal for roofs covered with various types of roof-membrane.

Heights available: 30 cm

Standard use (daylight-optimised)

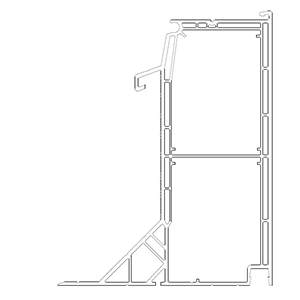

2-skinned PVC upstands - standard use

PVC upstand 16 (daylight opimized)

PVC upstands offer maximum daylight entrance and characteristically have a vertical upstand to provide as much as possible daylight.

Heights available: 16 cm

PVC extension upstands

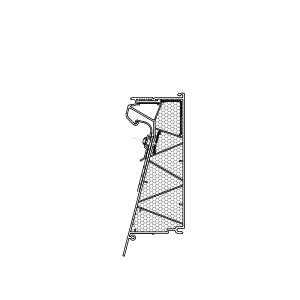

Cross cut illustration of a 2-skinned PVC extension upstand for renovation

PVC extension upstand 15

PVC extension upstands are especially designed for renovation. Insulated with low thermal conductivity and prepared for a safe roof connection, the upstands can be combined with accessories for comfort ventilation.

Heights available: 15 cm

2-skinned Wood upstands

Wooden upstands are typically used in the nordic countries thanks to the high availability of natural raw material.
In combination with dome rooflights or flat roof windows, planned applications can be provided with a positive CO2 effect.

Standard use

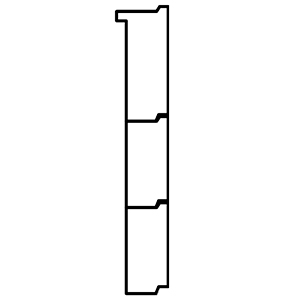

Wood-2skinned-upstand

Wood upstand 15 (daylight optimized)

Wooden upstands are designed to provide planned applications such as comfort and SHEV ventilation. The good thermal insulation properties are based on natural material that can be improved with added insulation. The vertical construction ensures maximum daylight influx.

Heights available: 15 until 70 cm (and on demand)
