Grillodur^® Pitched Continuous Rooflights

Grillodur^® is charecterised by its light weight, excellent thermal performance, mechanical strength, chemical resistance and by providing glare and shadow free lighting, that ensures optimum illumination at all times.

• Versatile design solution with glazing slopes from 8° to 90°.
• Equipped with corresponding flap systems and opening devices, the Grillodur^® continuous rooflight can provide daily comfort ventilation, and effective smoke and heat exhaust.
• Fall-through safe product. Flap openings can be equipped with a fall-through protection system for maximum safety on the roof.
• Accessories like adjustable upstands, secure roof membrane connections and intelligent building management systems can be configured to project requirements.
• Offered as an end-to-end solution, from design consultation to installation.



Other Grillodur^®systems

Grillodur Barrel Vault Continuous Rooflights
Grillodur Daylight System

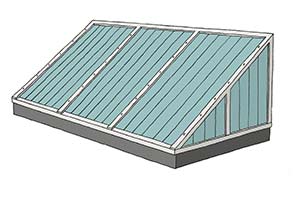

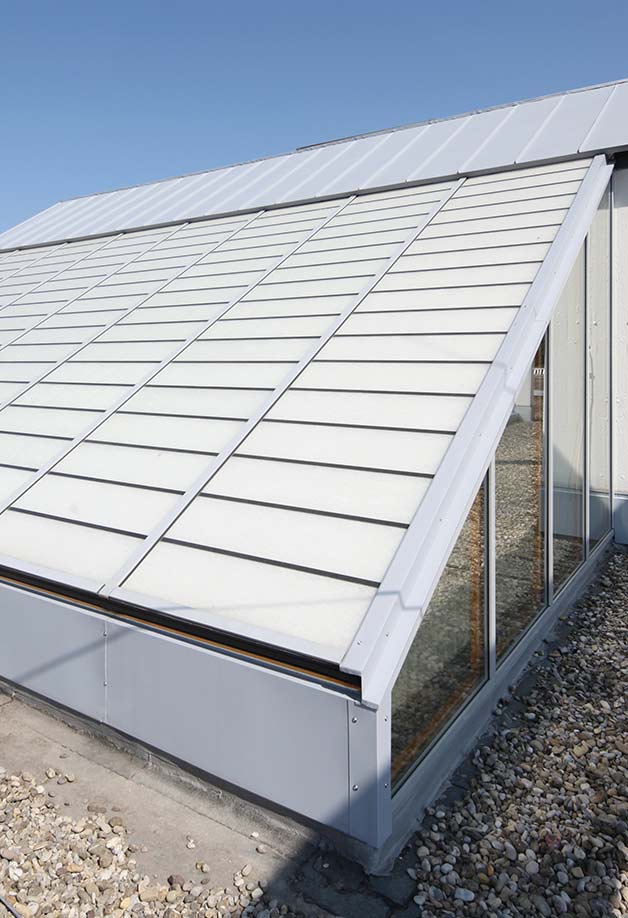

Grillodur mono pitched continuous rooflight illustration

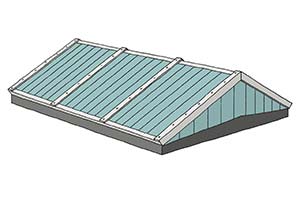

Grillodur dual pitched saddle rooflight illustration

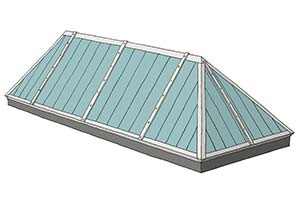

Grillodur hipped rooflight illustration

• Grillodur^® is a composite panel, comprising at least two semi-transparent fiberglass sheets with a spun glass insulation core. The fibreglass sheets are adhered to a self-supporting aluminium frame.
• Panels are manufactured as 2000 mm wide elements and delivered to site for fast and efficient installation of a continuous rooflight.



1) Aluminium profile   2) Fibre glass sheet
3) Spun glass insulation

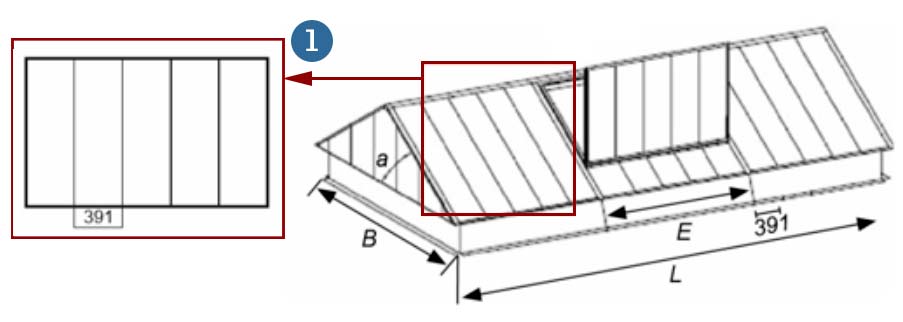

Sizes and dimensions

• Nominal width B: up to 6000 mm
• Nominal length L: to suit project
• Standard element width E: 2000 mm
• Angle a: standard slopes 30° and 45°, custom upon request

• Grid dimension of core profiles: 391 mm

• Profile face width: 60 mm
• Inclusion horizontal profile

1) Plane single element

Grillodur pitched rooflight schematic diagram

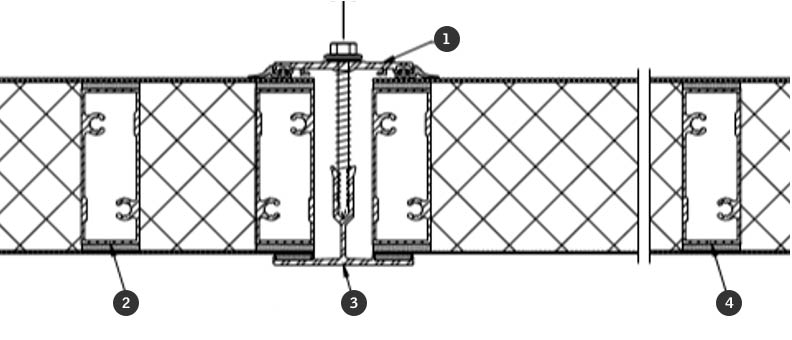

Detail section drawing Grillodur composite panel

1) Aluminium upper belt  2) Support profile “0-tube”  3) Aluminium lower belt
4) Support profile “0-tube”

Different combinations of glazing colour, fibreglass sheet thickness and density of the spun glass insulation core can deliver a wide range of photometric and thermal performance.

Panel parameters:

• glazing types: 2-, 3- and 4-skinned structures
• four standard colours: natural, blue, white and grey translucent
• fibreglass sheet thicknesses: 1.1 to 2.0 mm

Performance (depending on panel composition):

• U-value of the glazing: as low as 0.9 W/m²K
• Total energy transmission: up to 21%
• Light transmission: 76% to 13%
• Airborne sound insulation: up to 36 dB

Illustration from Rasmus

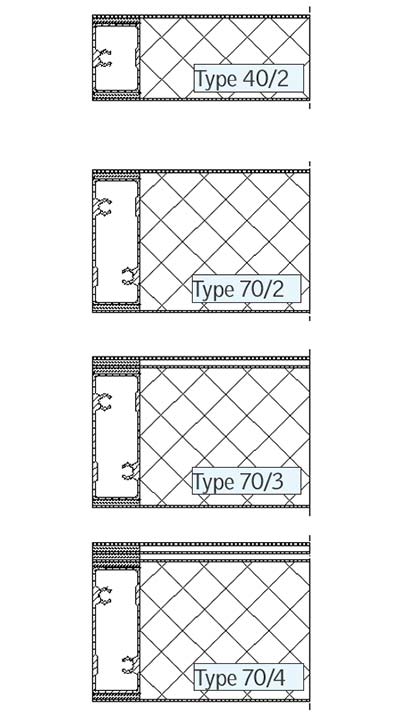

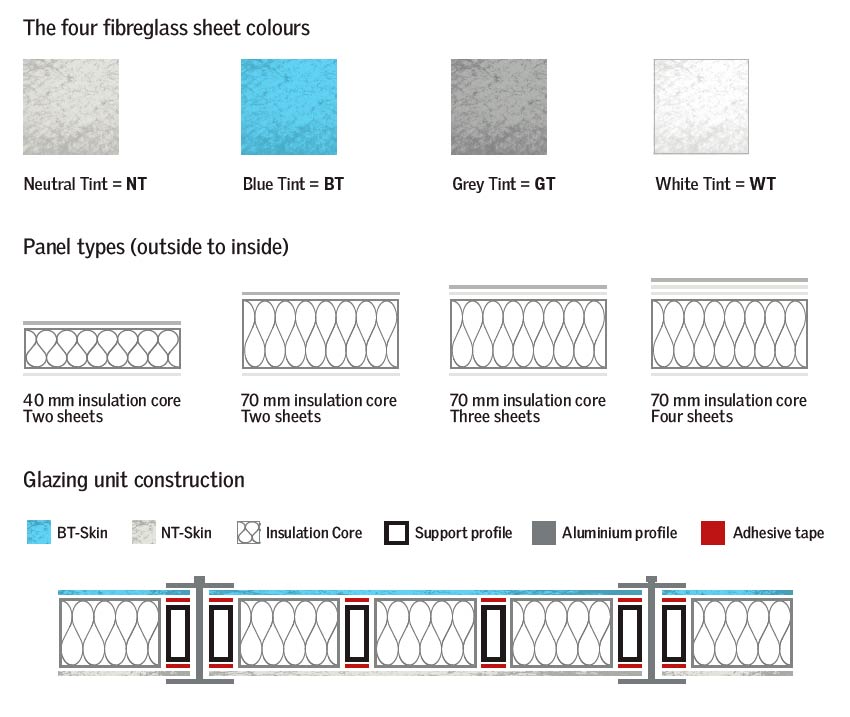

Grillodur glazing type drawings

• Lightweight, energy efficient Grillodur^® system is ideal for refurbishment projects, having a low dead-weight of 10 kg/m².
• Prefabricated elements contribute to fast and efficient installation.
• Fall-through safe in accordance with GS BAU 18.
• Snow load: panels can bear up to 2.5 KN/m² (depending on panel construction).
• Chemical resistance: high resistance to kerosene, coolants, lubricants, acids, alkaline solutions and others.
• Highest classification of ball impact safety according to DIN 18032-3 => ideal for sports facilities.
• Meltable and can therefore be calculated as a heat exhaust surface in accordance with DIN 18230.
• Smoke and heat exhaust ventilation, tested according to DIN EN 12101-2, can be integrated with the panels.





Equipped with corresponding flap systems and opening devices, Grillodur^® continuous rooflights can provide effective smoke and heat exhaust ventilation (SHEV), as well as daily comfort ventilation.

• A range of rooflight flap types and sizes, providing the right fit and performance for every project.
• Certified SHEV systems tested according to DIN EN 12101-2, offering the highest level of fire protection.
• Smartcontrol is an optional intelligent building managment system for the comfortable and safe control of all SHEV and comfort ventilation systems.

Explore our certified smoke and heat exhaust and comfort ventilation solutions

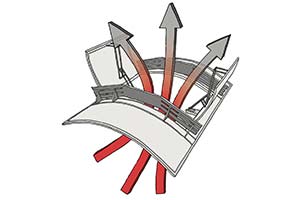

Ventilation and Smoke and heat exhaust Grillodur interior view

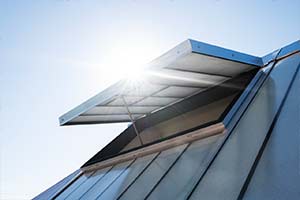

Grillodur rooflight ventilation system interior view
